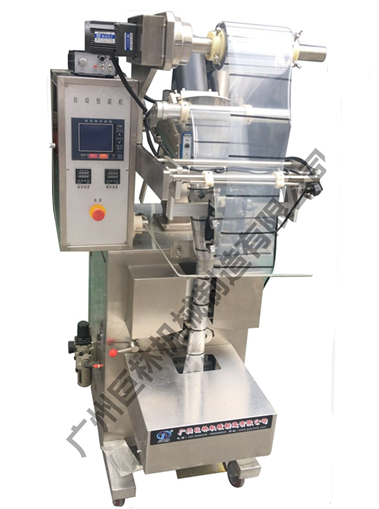

  • SJ-Y3粉剂自动包装机

  • SJ-Y3粉剂自动包装机
  • 【SJ-Y3粉剂自动包装机 】详细信息


  • 特点 Features

    背封,三边封,四边封包装形式

    包装运行数据及调节在显示屏上直观显示,直接操作

    装配光电控制装置保证包装袋图案完整

    自动完成制袋,计量,充填,封合,断切,计数,打印批号

    壳体及物料接触部位使用不锈钢材料
    Back sealing, three-side sealing, four-side sealing packing method
    The packing data and adjustment can be displayed on the screen. The user can directly operate it on it.????
    Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
    It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
    The body and the parts touching the material are made of stainless steel.

    适合物料 Suitable material

    食品,医药,化工行业粉状物料
    It is applicable for packing foodstuff, medicine and chemical industry powder.

    技术规格 Technical specifications
    型号

    Type

    SJ-Y3

    SJ-Y3
    制成袋长 mm

    bag-making length

    50-170

    50-320

    制成袋宽 mm

    Bag-making width

    25-120

    70-190
    包装薄膜宽度 mm

    Packing film width

    60-240

    160-380
    包装容量 ml

    Packing capacity

    5-100

    50-600
    包装速度 bags/min

    Packing speed

    30-60

    20-40

    功率 Kw

    power

    1.8

    20-40

    气源 Mpa

    air power

    0.6

    0.65

    耗气量 L/min

    air consumption

    100

    100

    外形尺寸 mm Overall Dimension 760×980×1700 900×1110×2100
    整机质量 Kg

    Weight

    310

    500
